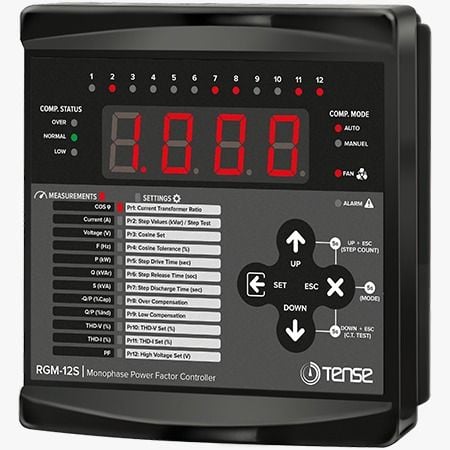

RGM-12S 12 Kademe, LED Display Ekranlı Monofaze Reaktif Güç Kontrol Rölesi
0,00 USD
Category
Stock Code
RGM-12S
Price
0,00 USD + VAT
ALL PRODUCTS IN 3 MONTHS INSTALLMENTS
RGM-12S reactive power control relay is designed to reduce inductive power not used by loads but drawn from the network. If inductive reactive power is drawn from the network, it intervenes by drawing a capacitor at the appropriate value. In this way, it tries to bring the Cos phi value to the desired level.
- 7 Different Compensation Programs
- Manual Compensation Option
- 20mm. Easy Installation and Use with 4 Digit Led Display
- Can Only Compensate Inductive Systems
- Automatic Step Measurement
- Step On, Drop Off and Discharge Times Can Be Adjusted
- Voltage and Current Harmonic Alarm Values Can Be Adjusted
- Over and Under Compensation Alarm Values Can Be Adjusted
- Voltage, Harmonic Voltage/Current, Over and Under Compensation Alarm Output
- Voltage, Current and Frequency Values Can Be Monitored
- Active Power, Reactive Power and Apparent Power Values Can Be Monitored
- THD-I Monitorable up to 15th harmonic
- THD-V Monitorable up to 15th harmonic
- Cosine Value Can Be Observed
- Power Factor Value Can Be Monitored
- Capacitive/Active and Inductive/Active Ratios Can Be Monitored
- Automatic Fan Output
- Stage Values Can Be Monitored
- Equivalence of Ageing in Levels (In Certain Compensation Programs)
