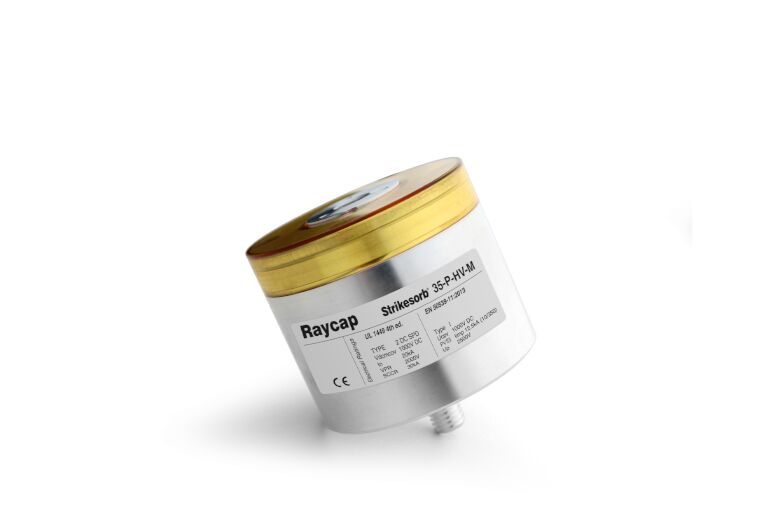

Strikesorb 35 DC

Strikesorb® 35 modules are specifically designed for DC voltage systems. Strikesorb 35 is classified as Class I and Class II SPD according to IEC 61643-31 and Type 2 Component Assembly according to UL 1449 5th Edition.

• category IEC/EN Class I and Class II,
  Type 2 Component Assembly per UL 1449 5th Edition
• Suitable for DC power installations such as photovoltaic, power semiconductor and others
• Maximum Continuous Operating DC Voltage
  [U cpv ] up to 1500 V
• Nominal Discharge Current [I n] per UL 1449 5th Edition 20 kA (8/20 μs)
  ] (except 35-D-HV-M)
• Protective elements: MOV
• Pulse Discharge Current [l imp ] 12.5 kA (10/350 μs) according to IEC 61643-31
• Strikesorb's patented design minimizes the effects of aging and eliminates the risk of catastrophic failure, explosion or fire.
• Available in a variety of different operating voltages
• 10-year limited lifetime warranty
